| 产品名称： |

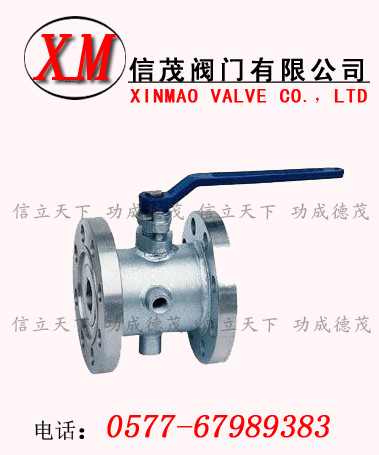

保温球阀 |
| 产品型号： |
BQ41F |
| 产品特点： |
信茂保温球阀：质量可靠，价格实惠，交货及时，售后周到.我公司提供全套工程阀门解决方案，阀门售前、售中、售后专业服务！ |
 |
|
保温球阀主要零件材质
|
零件名称
|
CF8系列
|
CF3系列
|
CF8系列
|
CF3系列
|
CF8系列
|
|
阀体
|
CF8
|
CF3
|
CF8M
|
CF3M
|
WCB
|
|
球体
|
F304
|
F304L
|
F316
|
F316L
|
1Cr13
|
|
阀座
|
PTFE
|
PTFE
|
PTFE
|
PTFE
|
PTFE
|
|
阀座支承
|
304
|
304L
|
316
|
316L
|
25
|
|
O形圈
|
氟橡胶
|
氟橡胶
|
氟橡胶
|
氟橡胶
|
氟橡胶
|
|
阀杆
|
F304
|
F304L
|
316
|
F316L
|
1Cr13
|
|
填料
|
PTFE
|
PTFE
|
PTFE
|
PTFE
|
PTFE
|
|
阀杆轴承
|
PTFE+304
|
PTFE+304L
|
PTFE+316
|
PTFE+316L
|
PTFE+304
|
|
填料压环
|
304
|
304L
|
316
|
316L
|
1Cr13
|
|
夹套
|
304
|
304L
|
316
|
316L
|
25
|
|
夹套接管
|
304
|
304L
|
316
|
316L
|
1Cr13
|
保温球阀1.6MPa主要连接尺寸
|
尺寸
|
in
|
3/4"
|
1"
|
1-1/2"
|
2"
|
3"
|
4"
|
6"
|
8"
|
|
DN
|
20
|
25
|
40
|
50
|
80
|
100
|
150
|
200
|
|
L
|
mm
|
117
|
127
|
165
|
178
|
229
|
254
|
292
|
330
|
|
H
|
mm
|
101
|
106
|
125
|
135
|
193
|
265
|
355
|
410
|
|
W
|
mm
|
160
|
160
|
230
|
230
|
400
|
650
|
1050
|
1050
|
|
E
|
mm
|
58.5
|
63.5
|
62.5
|
68
|
82
|
83
|
95
|
100
|
|
P
|
in
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT1
|
|
法兰规格
|
mm
|
40
|
50
|
65
|
80
|
150
|
200
|
250
|
350
|
保温球阀2.5-4MPa主要连接尺寸
|
尺寸
|
in
|
3/4"
|
1"
|
1-1/2"
|
2"
|
3"
|
4"
|
6"
|
8"
|
|
DN
|
20
|
25
|
40
|
50
|
80
|
100
|
150
|
200
|
|
L
|
mm
|
117
|
127
|
165
|
178
|
229
|
254
|
292
|
330
|
|
H
|
mm
|
101
|
106
|
125
|
135
|
193
|
265
|
355
|
410
|
|
W
|
mm
|
160
|
160
|
230
|
230
|
400
|
650
|
1050
|
1050
|
|
E
|
mm
|
58.5
|
63.5
|
62.5
|
68
|
82
|
83
|
95
|
100
|
|
P
|
in
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT1
|
|
法兰规格
|
mm
|
40
|
50
|
65
|
80
|
150
|
200
|
250
|
350
|
保温球阀150Lb主要连接尺寸
|
尺寸
|
in
|
3/4"
|
1"
|
1-1/2"
|
2"
|
3"
|
4"
|
6"
|
8"
|
|
DN
|
20
|
25
|
40
|
50
|
80
|
100
|
150
|
200
|
|
L
|
mm
|
117
|
127
|
165
|
178
|
229
|
254
|
292
|
330
|
|
H
|
mm
|
101
|
106
|
125
|
135
|
193
|
265
|
355
|
410
|
|
W
|
mm
|
160
|
160
|
230
|
230
|
400
|
650
|
1050
|
1050
|
|
E
|
mm
|
58.5
|
63.5
|
62.5
|
68
|
82
|
83
|
95
|
100
|
|
P
|
in
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT1
|
|
法兰规格
|
in
|
1-1/2"
|
2"
|
2-1/2"
|
3"
|
6"
|
8"
|
10"
|
14"
|
保温球阀300Lb主要连接尺寸
|
尺寸
|
in
|
3/4"
|
1"
|
1-1/2"
|
2"
|
3"
|
4"
|
6"
|
8"
|
|
DN
|
20
|
25
|
40
|
50
|
80
|
100
|
150
|
200
|
|
L
|
mm
|
117
|
127
|
165
|
178
|
229
|
254
|
292
|
330
|
|
H
|
mm
|
101
|
106
|
125
|
135
|
193
|
265
|
355
|
410
|
|
W
|
mm
|
160
|
160
|
230
|
230
|
400
|
650
|
1050
|
1050
|
|
E
|
mm
|
58.5
|
63.5
|
62.5
|
68
|
82
|
83
|
95
|
100
|
|
P
|
in
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT3/4
|
NPT1
|
|
法兰规格
|
in
|
1-1/2"
|
2"
|
2-1/2"
|
3"
|
6"
|
8"
|
10"
|
14"
|
